韩国首尔Ann Demeulemeester shop

时间:2008-11-18  来源:都市世界  作者:佚名


李铁:被误读的城镇化 2013城市发展与规划大会
2013年4月29-5月5日 张家界城镇体系规划
难题与对策:城镇化的路径选择 长沙天心城市设计


The parking lot/courtyard is at the center of the site, exposed to the street on the southern end. The entrance to the Ann Demeulemeester Shop is located on the western side of the courtyard, and stairs that lead to the other two programs are located on the eastern side. Landscaping of dense bamboo form a wall along each of the remaining three sides that border neighboring sites. Inside the first floor shop, undulating dark brown exposed concrete forms an organically shaped ceiling.

Round columns on the edges of the space continue the ceiling surface while providing the necessary structural support. This structural system creates arched openings of varying sizes that are open and as exposed as possible to the outside road and the bamboo hedges. This organic formation is not only a dynamic space but a flexible rectangular one (11.2m x 14m). The additional wing on the eastern side contains support functions such as fitting rooms, storage, and a bathroom, efficiently divided and connected at the same time.

The restaurant’s main entrance is a staircase that runs alongside the entire eastern side of the building. The shape of the ceiling below influences the restaurant space above, comprised of a three-level skip-floor formation. The two open-air spaces inside, a hidden terrace toward the rear of the building that extends from the top level, and a rooftop space accessible by stairs form a restaurant with intimacy, varying in spatial characteristics.

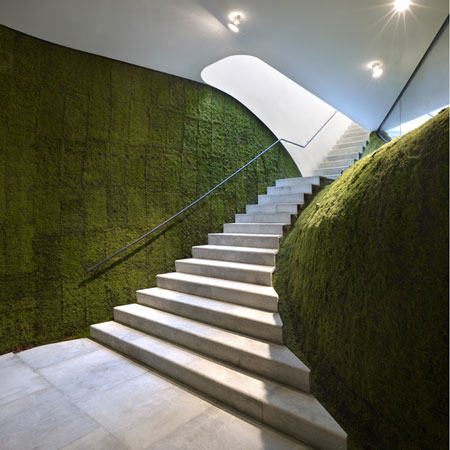

The stairs leading to the basement shop begins as a narrow, white, architectural space that gradually enlarges to become another organic shape—like a moss-covered subterranean cave—and serves as an entrance. This space is open to the outside, while at the same time is a composite garden buried 5.5m below ground.

The outside building material is primarily a geotextile planted with a herbaceous perennial to form a living façade, while the other three sides that face bamboo borders are clad in steel sheets are finished with propylene resin.

Project Data:

architect: cho,minsuk + park,kisu

design team: mass studies

location: 650-14, Sinsa-dong, Gangnam-gu, Seoul, korea

site area: 377.60 m2

gross floor area: 220.66 m2

total floor area: 734.33 m2

building-to-land ratio: 58.44%

floor area ratio: 119.76%

building scope: 3f,b1

structure: rc

finishing: vertical garden(Pachysandra terminalis),

exposed color concrete

design period: 2007.1~2007.5

construction period: 2007.4~2007.10
